Two Outlet Model - DC 60kW-200kW

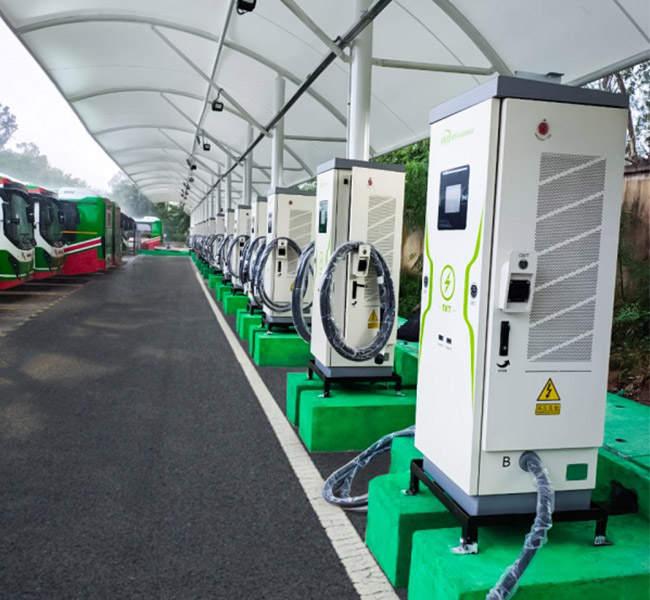

TKT’s dual outlet DC charging stations range from 60 kW to 200 kW. Support CCS/CHAdeMO/GBT standard. This is enough to meet the needs of different regions, different prices and different scenarios, and can meet the needs of all pure electric buses, trucks and family cars. Due to its small size, it can be widely built in bus stations, large parking lots, etc.
– Output Rating: 60kW~200kW
– Protection Degree: IP54 / IP55
– Min Voltage Req: 380V ( Input Side )
– Connector Standard: CCS1/CCS2/CHAdeMO/GBT
– Quality Certification: ISO9001, IATF16949, TUV, CE, ect.
– Advantages: Dynamic Load Balancing, Modular Design, 100+Patents, IP55, Customization, ect.
Recommended Products
We have established stable and long-term cooperative relationships with renowned domestic enterprises such as Yutong Bus, Zhongtong Bus, BYD Auto, and Ningde Times, among others. Similarly, in the international market, we have developed stable and long-term partnerships with companies like Taiwan Yuandian Technology, Turkey Lumhouse, India Tata, and India BYD, among others.
All Series Specification Table:
| Power | 60kW | 90kW | 120kW | 150kW | 160kW | 180kW | 200kW |
| Input Rating | 3-phase 400V/440V/480V±15% AC | ||||||
| Working Frequency | 45~65Hz | ||||||
| Output Voltage | 200~750V DC; 150~1000V DC | ||||||
| Max. Output Current | 5~200A | 5~300A | 5~400A | 5~500A | 5~533A | 5~600A | 5~667A |
| Output Connectors | CCS1, CCS2, CHAdeMO, GB/T | ||||||
| Constant Power Range | 300-750V; 400-750V; 600-750V; 300-1000V Optional | ||||||
| Power Factor | ≥0.99 | ||||||
| Efficiency | ≥94% | ||||||
| Display | 8” LCD Touch Screen | ||||||
| Network Connection | 4G/Ethernet | ||||||
| Communication Protocols | OCPP1.6J (OCPP2.0 upgradable) | ||||||
| Operating Temperature | -30℃ ~ +55℃ | ||||||
| Storage Temperature | -35℃ ~ +55℃ | ||||||
| Charging Cable Length | 5m/7m | ||||||
| IP Class | IP54 | ||||||
| Cooling Method | Air Cooling | ||||||
| Acoustic Noise | ＜60dB | ||||||
| Support Language | Chinese, English, French, German, Spanish, Italian, Portuguese, Russian, Czech, Finnish, Romanian. | ||||||
| Certificate | TUV CE CE Certificate: IEC61851-1, IEC 61851-21-2, EN61851-23 | ||||||
OEM/ODM Process
Over the past 24 years, TKT has become the preferred OEM choice in China for both bus air conditioning, battery thermal management system and EV charging stations . Their products are used by well-known brands such as Yutong, Nanjing Golden Dragon, Xiamen Golden Dragon, CIMC, Xinfei, and Hongyu. TKT is also an OEM for TATA Motors, TATA Marcopolo Motors, and Daewoo, and exports to over 85 countries with sales and service centers worldwide.
If you are interested in TKT, please don’t hesitate, and contact us. We offer the best prices for commercial electric vehicle air conditioning products and provide full service.
More EV Charging Station Products
TKT Fast Charging Station Advantage
1. All products are designed to meet international export standards and are compatible with OCPP1.6 and OCPP2.0 charging protocols. Charging voltage is automatically configured to meet the needs of different models.
2. All products utilize high-quality components from internationally recognized brands. Our gun line is selected specifically from the Phoenix brand, ensuring guaranteed quality and after-sales support.
3. Different charging methods are available, including automatic, scheduled, quantitative, SOC charging, and others. The power distribution and constant power functions can shorten the charging time by 20%.
4. The high-power charging pile can fully charge a vehicle within 20 minutes, saving time for the user and cost for the operator.
The following is a list of features offered by our APP:
1. The APP enables you to perform various functions such as positioning, navigating, scheduling charging appointments, scanning code charging, and real-time querying. Additionally, it supports payment methods such as APP and one-card.
2. It has an 8-inch touch screen that can display multiple languages. The simple design enhances the user experience.
3. The device has an IP55 protection level, which means it is moisture-proof, mildew-proof, water-proof, dust-proof, and flame retardant. It comes with various protection functions such as over-temperature protection, overload protection, short-circuit protection, leakage protection, and battery anti-reverse connection.
4. Our device features a humanized design that makes it easy for customers to swipe their cards, take out the gun to charge, emergency park, and perform other operations. The charging gun head is equipped with an electronic lock that prevents the gun head from being pulled out while charging, ensuring personal safety.
1. Our charging stations integrate Ethernet, 4G communication modes, and cloud platform service systems, enabling independent intelligent management. This system allows users to access features such as charging and settlement, report statistics, equipment maintenance, remote monitoring and management, and more. Managers can also easily track the operation of charging stations.
2. Our charging stations boast a perfect electrical safety design, featuring timing and real-time monitoring security protection, equipment abnormality pre-diagnosis, alarm feedback, and BMS-independent security protection.
3. Our charging stations have a modular design, with each module directly upgradable to meet customer needs. Additionally, the charging stations feature an independent fault diagnosis system, with modules that can be replaced independently in case of a problem.
TKT Charging Station FAQs
When it comes to safety design, electric vehicle (EV) charging stations must provide safety, efficiency, and reliability. For this reason, TKT’s charging stations incorporate several safety protection measures, including lightning, arcing and leakage protection. These measures ensure that EVs can be charged safely and reliably even in adverse weather conditions.
However, users still need to follow all safety guidelines and recommendations to ensure the safety of the entire charging process.
The main difference between AC (alternating current) and DC (direct current) car chargers lies in the type of current they use to charge a vehicle’s battery.
AC car chargers: These chargers convert the high-voltage alternating current from standard power outlets (typically 120V or 240V) into low-voltage direct current to charge the car’s battery. They require an external power source, such as a household socket, and often come with portable charging cables that can be plugged into different electrical outlets.
DC car chargers: These chargers provide direct current power directly to the car’s battery, bypassing the need for an AC-to-DC conversion. They are generally used to charge electric vehicles (EVs) from designated charging stations. DC chargers can provide higher voltage and power levels, allowing for faster charging times compared to AC chargers.
In summary, AC car chargers convert alternating current from standard power outlets into low-voltage direct current, while DC car chargers provide direct current power without the need for conversion. DC chargers are commonly used for electric vehicles and offer faster charging times.
Don’t worry about damaging your electric car battery from frequent rapid or fast charging. The manufacturers have included safety systems to prevent this. For instance, if the car detects too much power being supplied to the battery too often, it will automatically lower the rate of charge.
Level 3 charging, also known as DC fast charging, is the quickest way to charge an electric vehicle. This type of charging can supply power between 60 kW and 200 kW. With a Level 3 DC fast charger, an electric car can be charged up to 80% in just 15 to 60 minutes.
Our standard warranty period is three years, but if you have any specific requirements, please contact our customer service team.
The lead time for your order will be between 30 and 45 working days, depending on the quantity of items and our production schedule.
