Wallbox DC Fast Charger

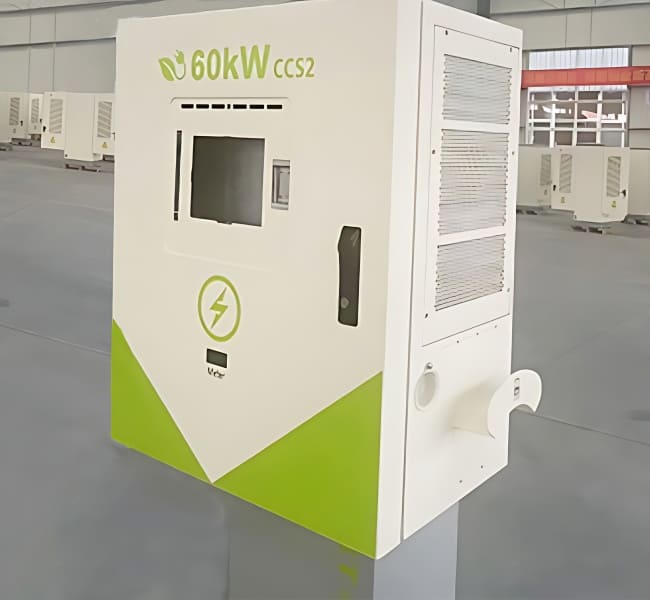

WallBox DC Charging Station | DC 20kW-80kW

TKT 20kW-80kW wallbox fast charging station can choose CCS, CHAdeMO, GB/T and other different connectors to meet the charging needs of all vehicles.
TKT wallbox DC charging station is the best choice for charging electric vehicles today. It is designed for fast charging in commercial and private places, such as retail and mall parking lots, fleet charging stations, highway services, workplaces, residences, etc.

– Output Power: DC 20kW-80kW
– Input Rating: 3 phase 380V±15% AC(3P+N+PE)
– Max Output Current: 200A
– Charging Plug Quantity: Single and Double plugs
– Communication: Ethernet. wifi, 4G
– Cable Length: 5m
– Operating Temperature: -30℃ ~ +55℃

Recommended Products

TKT has specialized in electric vehicle air conditioning and battery thermal management systems for over 25 years. We have been providing public electric vehicle charging station solutions since 2010. We offer a wide range of charging stations to help customers worldwide in the pure electric vehicle sector. We aim to provide a one-stop-shop for all your electric vehicle needs.
Our fast-charging station products are ideally suited for use in commercial parking, auto manufacturers, fleets, fuel retailers, charging network operators, and more.

WallBox DC Charging Station

Contact Us

All Series Specification Table:

Power20kW40kW60kW80kW
Input Voltage3-phase 400V ±15% AC
Input Voltage TypeTN-S (Three Phase Five Wire)
Working Frequency45~65Hz
Power Factor≥0.99
Efficiency≥94%
Rated VoltageCHAdeMO 500V DC; CCS 750V DC; GBT 750V DCCHAdeMO 500V DC; CCS 1000V DC; GBT 1000VDC
Max. Output Current66A132A100A200A
Display8” LCD Touch Screen
PaymentMobile APP/RFID/POS
Network Connection4G(GSM or CDMA)/Ethernet
Communication ProtocolsOCPP1.6J
Working Temperature-30°C  ~ +55°C
Storage Temperature-35°C  ~ +55°C
Operating Humidity≤95% Non-Condensing
ProtectionIP54
Acoustic Noise<60dB
Cooling MethodForced Air-Cooling

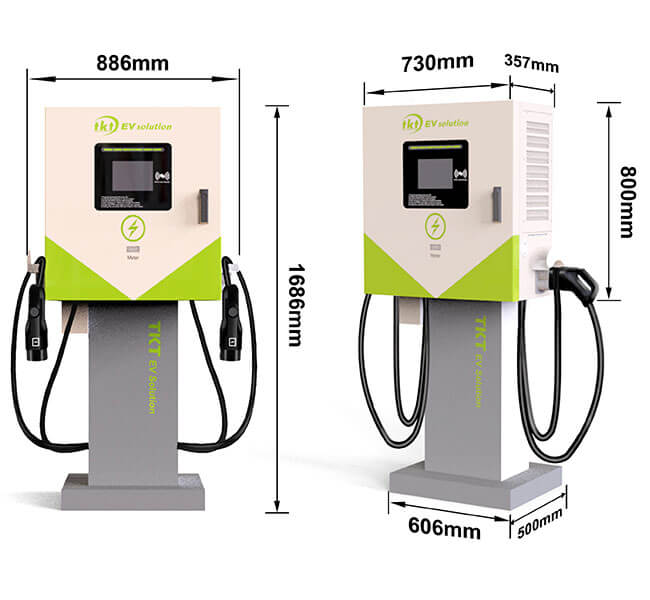

Dimension(W x D x H)690mm*584mm*1686mm (±20mm)
No. of Charging Cable1122
Cable Length5m
CertificateTUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2

More EV Charging Station Products

OEM/ODM Process

In the last 24 years, the TKT team has become the top choice for original equipment manufacturers (OEM) in China for bus air conditioning, battery thermal management systems, and electric car charging stations. Their products are used by well-known brands such as Yutong, Nanjing Golden Dragon, Xiamen Golden Dragon, CIMC, Xinfei, and Hongyu. TKT also serves as an OEM for TATA Motors, TATA Marcopolo Motors, and Daewoo, and has a presence in over 85 countries with sales and service centers around the world.

If you are interested in TKT, please don’t hesitate, and contact us. We offer the best prices for commercial electric vehicle air conditioning products and provide full service.

TKT Fast Charging Station Advantage

For products:

commercial electric vehicle charging station

1. All products are designed to meet international export standards and are compatible with OCPP1.6 and OCPP2.0 charging protocols. Charging voltage is automatically configured to meet the needs of different models.

2. All products utilize high-quality components from internationally recognized brands. Our gun line is selected specifically from the Phoenix brand, ensuring guaranteed quality and after-sales support.

3. Different charging methods are available, including automatic, scheduled, quantitative, SOC charging, and others. The power distribution and constant power functions can shorten the charging time by 20%.

4. The high-power charging pile can fully charge a vehicle within 20 minutes, saving time for the user and cost for the operator.

For users:

residential ev charger installation

The following is a list of features offered by our APP:

1. The APP enables you to perform various functions such as positioning, navigating, scheduling charging appointments, scanning code charging, and real-time querying. Additionally, it supports payment methods such as APP and one-card.

2. It has an 8-inch touch screen that can display multiple languages. The simple design enhances the user experience.

3. The device has an IP55 protection level, which means it is moisture-proof, mildew-proof, water-proof, dust-proof, and flame retardant. It comes with various protection functions such as over-temperature protection, overload protection, short-circuit protection, leakage protection, and battery anti-reverse connection.

4. Our device features a humanized design that makes it easy for customers to swipe their cards, take out the gun to charge, emergency park, and perform other operations. The charging gun head is equipped with an electronic lock that prevents the gun head from being pulled out while charging, ensuring personal safety.

For operators:

1. Our charging stations system integrate Ethernet, 4G communication modes, and cloud platform service systems, enabling independent intelligent management. This system allows users to access features such as charging and settlement, report statistics, equipment maintenance, remote monitoring and management, and more. Managers can also easily track the operation of charging stations.

2. TKT electric vehicle charging companies’ fast charging stations boast a perfect electrical safety design, featuring timing and real-time monitoring security protection, equipment abnormality pre-diagnosis, alarm feedback, and BMS-independent security protection.

3. Our best electric car charging station have a modular design, with each module directly upgradable to meet customer needs. Additionally, the charging stations feature an independent fault diagnosis system, with modules that can be replaced independently in case of a problem.

TKT Charging Station FAQs

What is the difference between AC and DC car chargers?

The main difference between AC (alternating current) and DC (direct current) car chargers lies in the type of current they use to charge a vehicle’s battery.

AC car chargers: These chargers convert the high-voltage alternating current from standard power outlets (typically 120V or 240V) into low-voltage direct current to charge the car’s battery. They require an external power source, such as a household socket, and often come with portable charging cables that can be plugged into different electrical outlets.
DC car chargers: These chargers provide direct current power directly to the car’s battery, bypassing the need for an AC-to-DC conversion. They are generally used to charge electric vehicles (EVs) from designated charging stations. DC chargers can provide higher voltage and power levels, allowing for faster charging times compared to AC chargers.

In summary, AC car chargers convert alternating current from standard power outlets into low-voltage direct current, while DC car chargers provide direct current power without the need for conversion. DC chargers are commonly used for electric vehicles and offer faster charging times.

How safe are TKT's charging stations?

When it comes to safety design, electric vehicle (EV) charging stations must provide safety, efficiency, and reliability. For this reason, TKT’s charging stations incorporate several safety protection measures, including lightning, arcing and leakage protection. These measures ensure that EVs can be charged safely and reliably even in adverse weather conditions.

However, users still need to follow all safety guidelines and recommendations to ensure the safety of the entire charging process.

Can any electric car use a fast or rapid charger?

Don’t worry about damaging your electric car battery from frequent rapid or fast charging. The manufacturers have included safety systems to prevent this. For instance, if the car detects too much power being supplied to the battery too often, it will automatically lower the rate of charge.

How long does it take to charge an EV with a Level 3 DC fast charger?

Level 3 charging, also known as DC fast charging, is the quickest way to charge an electric vehicle. This type of charging can supply power between 60 kW and 200 kW. With a Level 3 DC fast charger, an electric car can be charged up to 80% in just 15 to 60 minutes.

What is your warranty for EV chargers?

Our standard warranty period is three years, but if you have any specific requirements, please contact our customer service team.

How long is the lead time?

The lead time for your order will be between 30 and 45 working days, depending on the quantity of items and our production schedule.
